Sound managed
Composite sound insulation, vibration buffering and polyester acoustic lining reduce speech transmission and internal reverberation.
Commercial Acoustic Pods

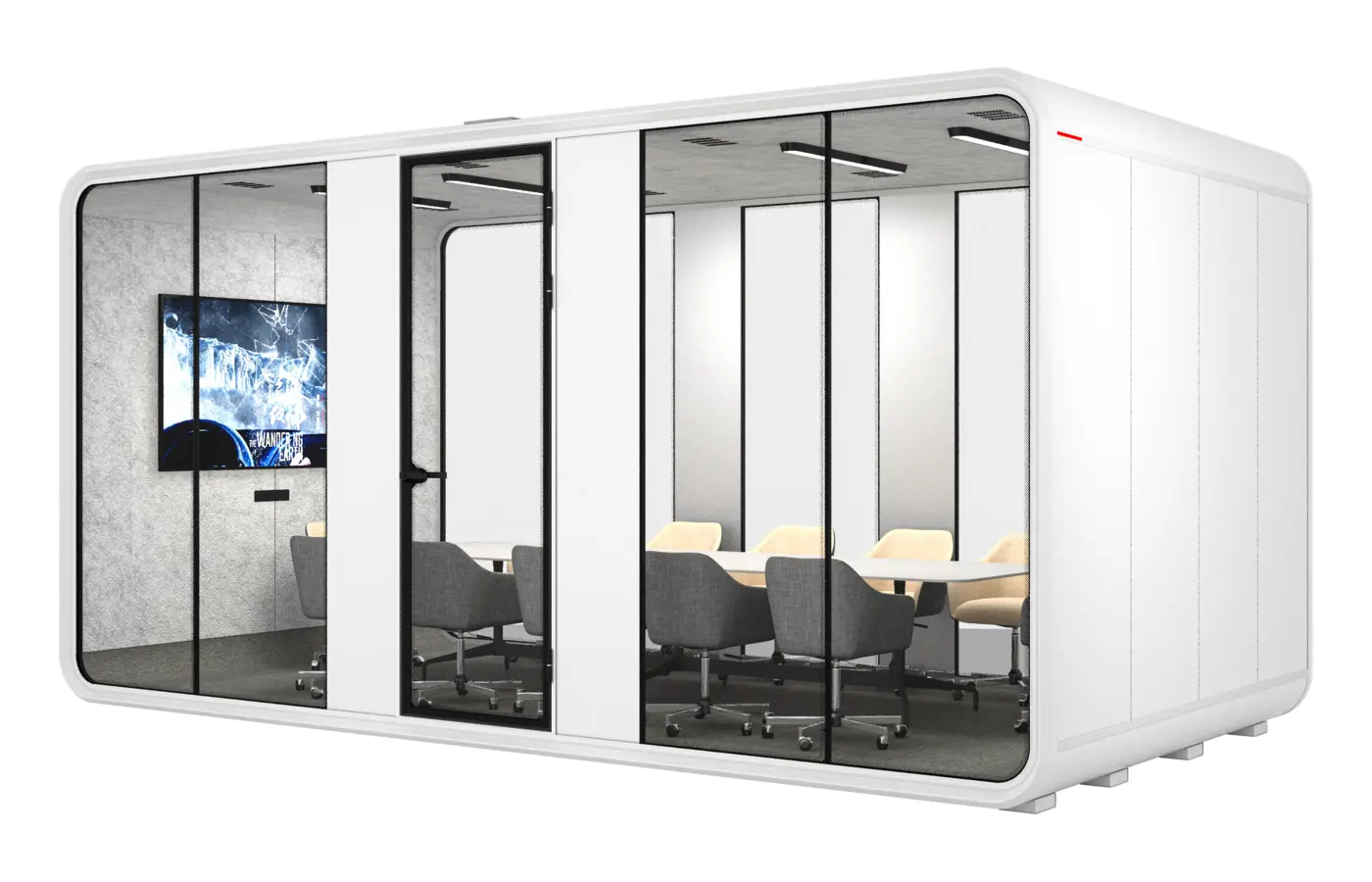

KL-4XL Acoustic Pod
KL-4XL commercial acoustic pod with ≥30 dB speech-band sound insulation, smart lighting, fresh-air circulation and modular construction for office projects.
≥30 dB insulationSmart lightingFresh-air circulationModular installation
Final finishes, electrical outlets, furniture configuration, packing and compliance documents are confirmed with the quotation.
01 / 02
Acoustic privacy system
Quiet space engineered for commercial interiors.
KL-4XL uses a modular aluminum structure, multilayer acoustic panels, insulated ultra-clear glass and smart environmental controls to create a comfortable enclosed workspace for modern office projects.
Commercial construction
6063-T5 aluminum framing, 50 mm composite steel panels and certified insulating glass support repeated installation and project use.
Smart comfort
Radar-sensed LED lighting, adjustable positive-pressure ventilation and integrated USB-A plus Type-C power support everyday use.
KL-4XL specification
Dimensions, construction and shipment data.
Specifications organized from the supplied acoustic pod parameter sheet.
Product typeCommercial acoustic pod

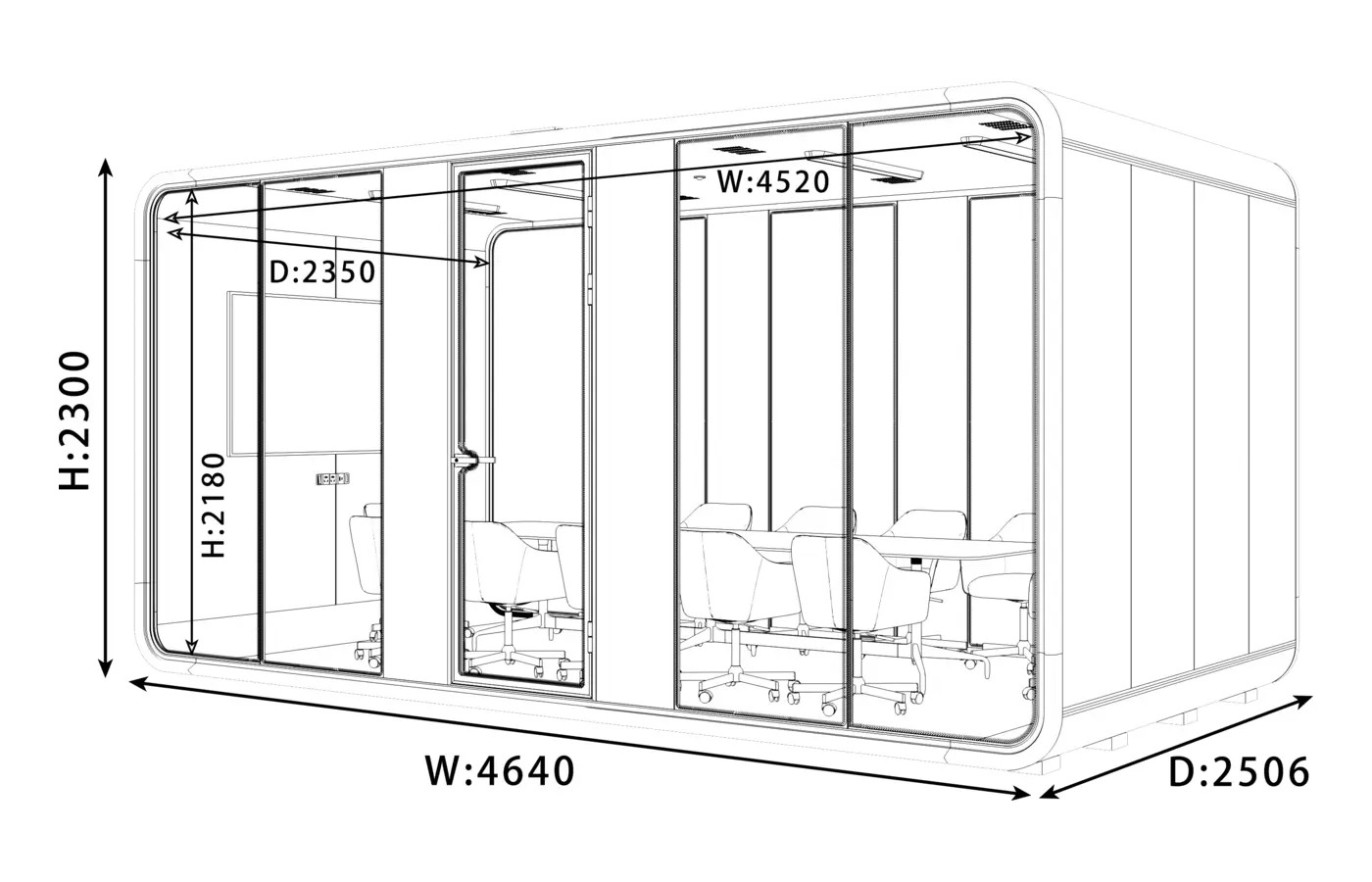

Overall dimensions4640 W × 2506 D × 2300 H mm
Interior dimensions4520 W × 2350 D × 2180 H mm
Packed dimensions900 W × 2500 D × 1005 H mm
Shipment volume4.6 m³
Packing pieces2
Product weight1550 kg
Acoustic performanceSpeech-band sound insulation ≥30 dB
Frame6063-T5 high-precision aluminum alloy, 3–5 mm wall thickness, epoxy powder-coated
Wall system50 mm acoustic composite steel panel with multilayer insulation and 55 kg/m³ polyester acoustic cotton
Glass and door5 mm + 20A + 6 mm hollow ultra-clear acoustic glass with 3C safety certification
Interior lining12 mm high-density, formaldehyde-free polyester fiber acoustic board
Floor system5 mm nylon carpet over a 50 mm acoustic composite steel panel
LightingThree-color LED, radar sensing and 0–10 level brightness adjustment on the standard adjustable version
VentilationPositive-pressure fresh-air circulation with radar sensing and 0–10 level fan adjustment
ElectricalMulti-function outlet with USB-A and Type-C; market-specific customization supported
MobilityFixed base with tool-assisted relocation
WarrantyMain structure: 10 years; electrical components and hardware: 3 years
Commercial project supply
Specify KL-4XL for your acoustic-space project.
Send quantity, destination, preferred finishes, electrical standard and furniture configuration for review and export quotation.
Request KL-4XL detailsCommercial purchasing
KL-4XL office privacy pod: dimensions and delivery
For a KL-4XL office pod quotation, use the published external dimensions of 4640 W × 2506 D × 2300 H mm and interior dimensions of 4520 W × 2350 D × 2180 H mm. Compare the usable interior with the proposed desk, seat or meeting table before approving an office privacy booth layout.
The listed product weight is 1550 kg and shipment volume is 4.6 m³. Include these figures in the receiving plan, then confirm packing dimensions, the delivery route and installation responsibilities for the selected order.
This model lists a fixed base with tool-assisted relocation. Plan the installed position and service access before assembly; confirm the relocation procedure rather than assuming the pod can be rolled between rooms.
State the intended call or meeting use, finish, electrical standard and furniture package in the RFQ. Occupancy, ventilation performance and acoustic evidence should be reviewed for the exact configuration.
Request a Project Quote
Tell us your quantity, destination and specification. Ask for model-specific MOQ, lead time, OEM / ODM options and mixed-container planning in one inquiry.
