Sound managed
Composite sound insulation, vibration buffering and polyester acoustic lining reduce speech transmission and internal reverberation.
Commercial Acoustic Pods

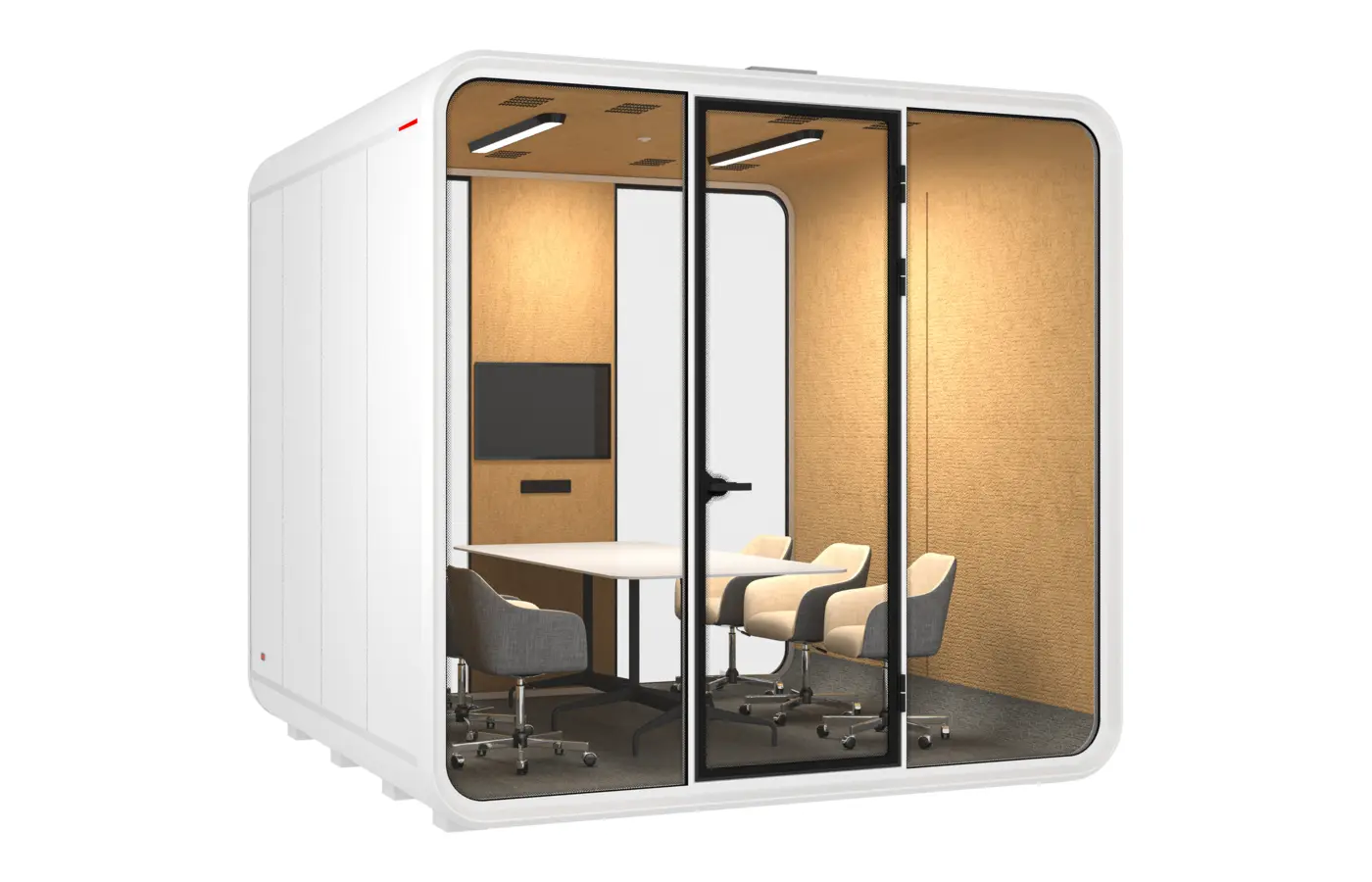

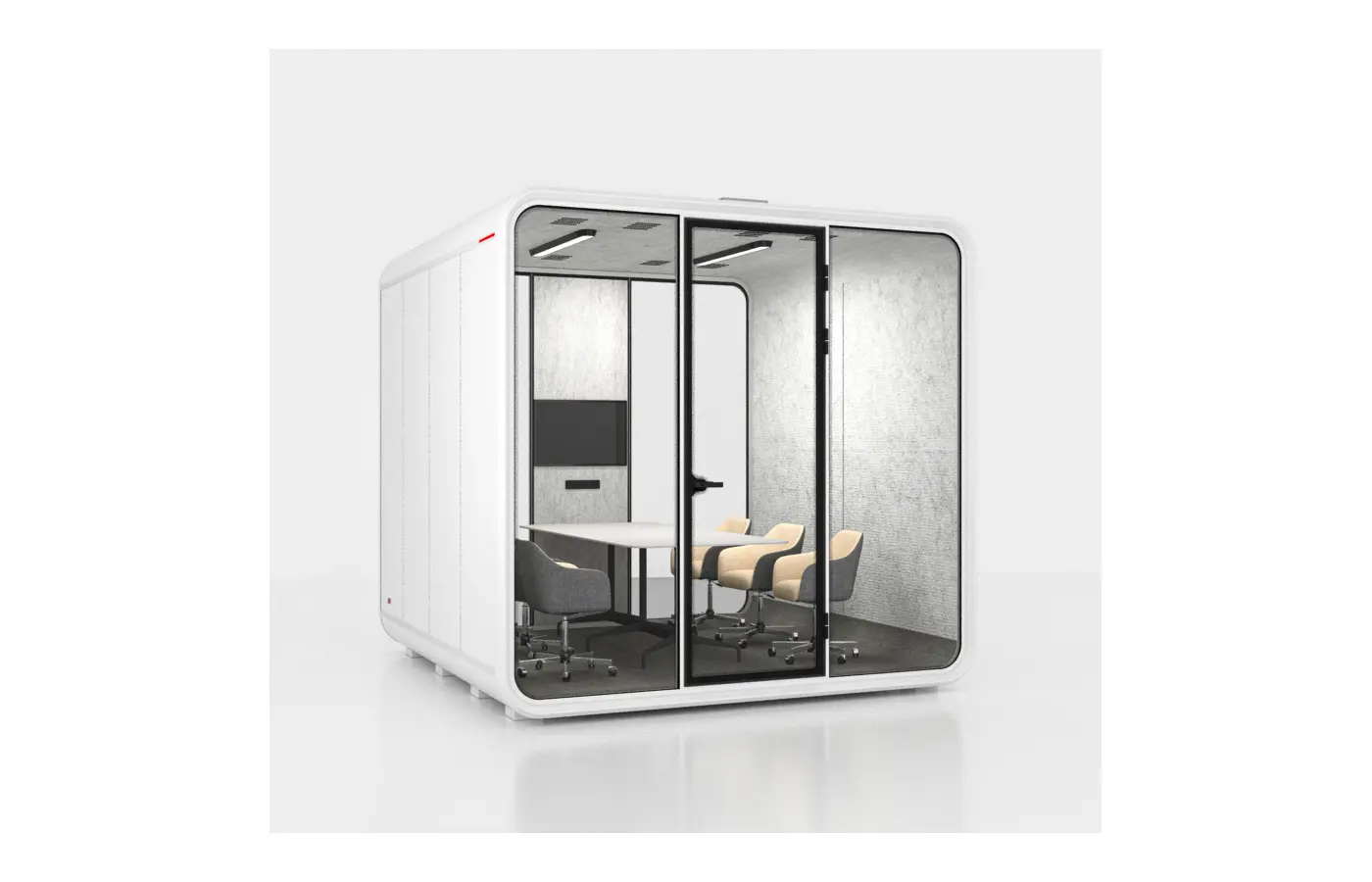

KL-XL Acoustic Pod
KL-XL commercial acoustic pod with ≥30 dB speech-band sound insulation, smart lighting, fresh-air circulation and modular construction for office projects.
≥30 dB insulationSmart lightingFresh-air circulationModular installation
Final finishes, electrical outlets, furniture configuration, packing and compliance documents are confirmed with the quotation.
01 / 03
Acoustic privacy system
Quiet space engineered for commercial interiors.
KL-XL uses a modular aluminum structure, multilayer acoustic panels, insulated ultra-clear glass and smart environmental controls to create a comfortable enclosed workspace for modern office projects.
Commercial construction
6063-T5 aluminum framing, 50 mm composite steel panels and certified insulating glass support repeated installation and project use.
Smart comfort
Radar-sensed LED lighting, adjustable positive-pressure ventilation and integrated USB-A plus Type-C power support everyday use.
KL-XL specification
Dimensions, construction and shipment data.
Specifications organized from the supplied acoustic pod parameter sheet.
Product typeCommercial acoustic pod

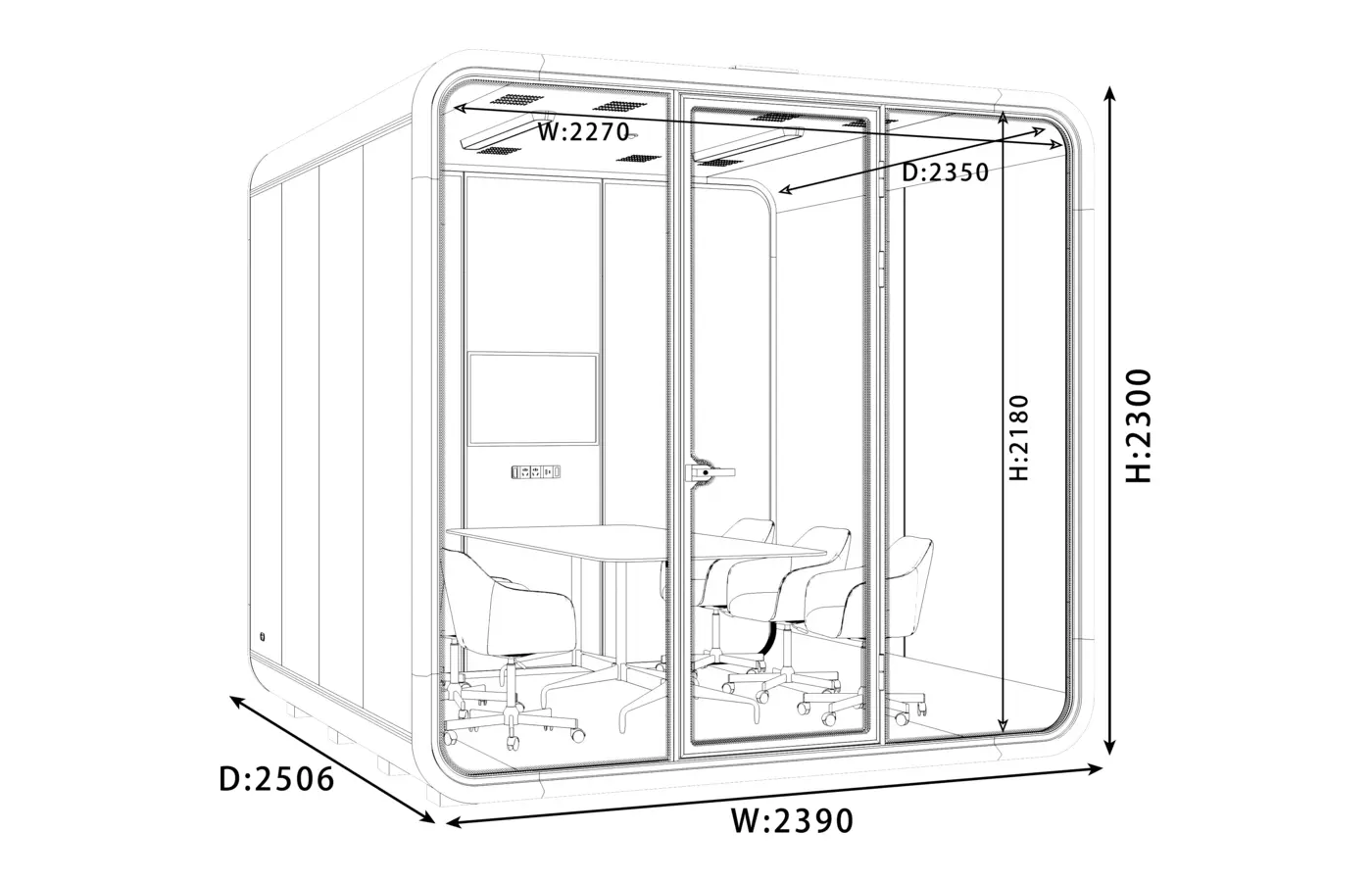

Overall dimensions2390 W × 2506 D × 2300 H mm
Interior dimensions2270 W × 2350 D × 2180 H mm
Packed dimensions580 W × 2500 D × 1005 H mm
Shipment volume2.9 m³
Packing pieces2
Product weight855 kg
Acoustic performanceSpeech-band sound insulation ≥30 dB
Frame6063-T5 high-precision aluminum alloy, 3–5 mm wall thickness, epoxy powder-coated
Wall system50 mm acoustic composite steel panel with multilayer insulation and 55 kg/m³ polyester acoustic cotton
Glass and door5 mm + 20A + 6 mm hollow ultra-clear acoustic glass with 3C safety certification
Interior lining12 mm high-density, formaldehyde-free polyester fiber acoustic board
Floor system5 mm nylon carpet over a 50 mm acoustic composite steel panel
LightingThree-color LED, radar sensing and 0–10 level brightness adjustment on the standard adjustable version
VentilationPositive-pressure fresh-air circulation with radar sensing and 0–10 level fan adjustment
ElectricalMulti-function outlet with USB-A and Type-C; market-specific customization supported
MobilityFixed base with tool-assisted relocation
WarrantyMain structure: 10 years; electrical components and hardware: 3 years
Commercial project supply
Specify KL-XL for your acoustic-space project.
Send quantity, destination, preferred finishes, electrical standard and furniture configuration for review and export quotation.
Request KL-XL details
