Contoured mesh back
The high-back profile follows the lumbar curve while technical mesh supports ventilation.
Mesh Office Chairs
M-98A-3 High-Back Mesh Task Chair with Flip-Up Arms
A space-efficient mesh task chair with an integrated PP+GF back frame, supportive lumbar curve, flip-up armrests and a high-resilience foam seat.
PP+GF frameIntegrated headrestFlip-up armsFoam seatUpright lock
Images show reference configurations. Final color, arm style, documentation and packing are confirmed with the quotation and approved sample.
Integrated high-back structure
Space-efficient support for everyday task seating.
The M-98A-3 combines a one-piece reinforced back frame and breathable nylon mesh with flip-up armrests that clear the chair for compact storage under work surfaces.

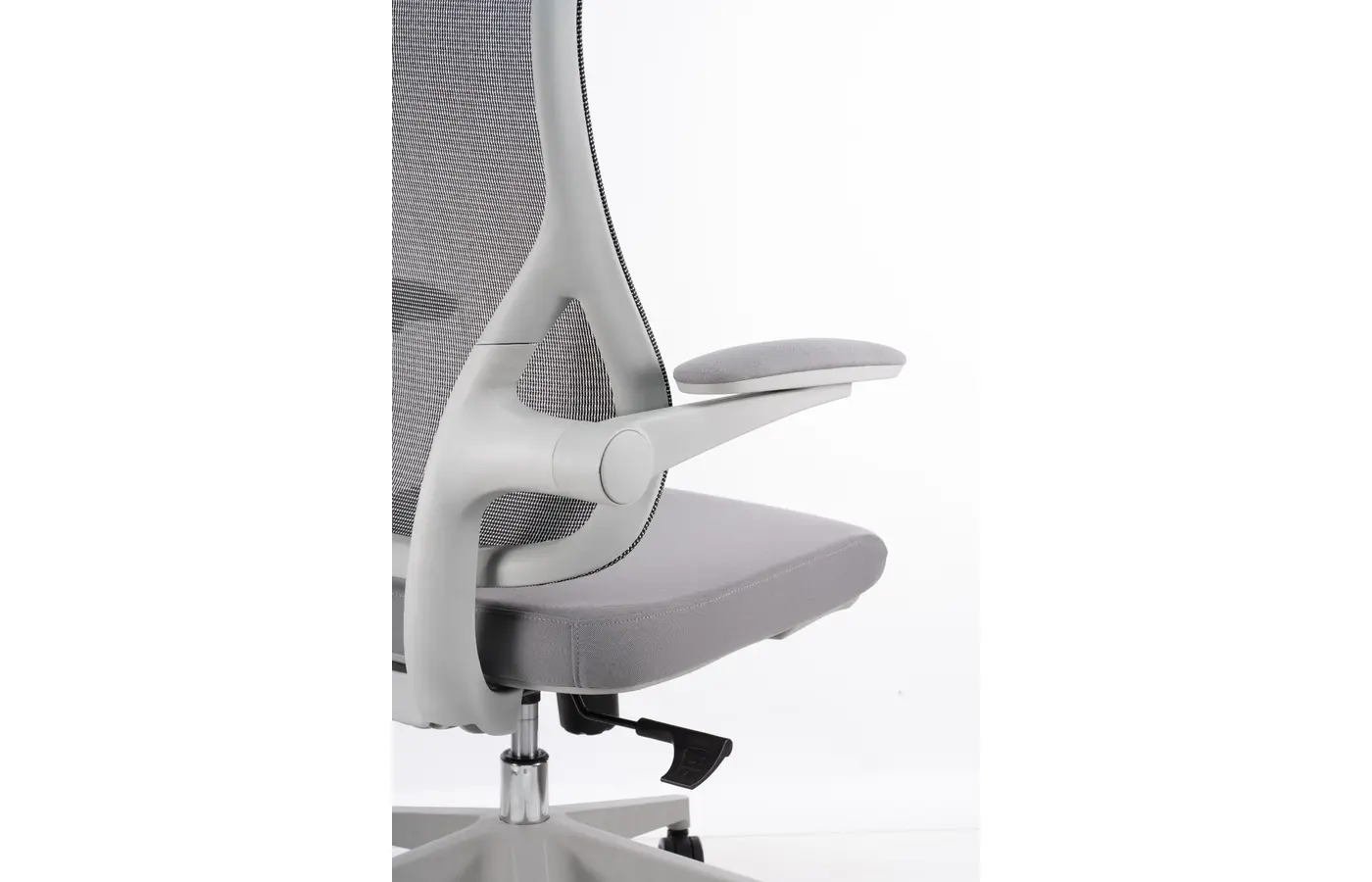

Flip-up armrests
Supportive arm pads rotate upward to reduce the chair's storage footprint.
Resilient foam seat
High-density foam and a 12 mm multilayer plywood support provide a stable sitting surface.
M-98A-3 specification
Commercial construction data.
Material and test values are supplier-provided. Final configuration and documentation are confirmed with the quotation and approved sample.
Back frameOne-piece injection-molded PP+GF structure with integrated lumbar-contoured profile
Material specificationNew imported PP+GF; environmentally preferable and fire-retardant supplier specification
Back upholsteryPremium nylon technical mesh
HeadrestIntegrated headrest section molded from new imported PP
ArmrestsPremium padded flip-up armrests
Seat cushionHigh-density high-resilience foam
Seat support12 mm environmentally preferable multilayer plywood with PP underside shell
MechanismUpright-position locking mechanism
Gas liftPremium safety gas lift
BaseØ320 mm nylon five-star base
Base testingSupplier static-load tested above 1,136 kg for two minutes
CastersØ50 mm PU nylon casters
Commercial project supply
Specify M-98A-3 for flexible task seating projects.
Send the quantity, destination, arm configuration and project timeline for configuration review and export quotation.
Request M-98A-3 details
