Sound managed
Composite sound insulation, vibration buffering and polyester acoustic lining reduce speech transmission and internal reverberation.
Commercial Acoustic Pods
KL-S Acoustic Pod
KL-S commercial acoustic pod with ≥30 dB speech-band sound insulation, smart lighting, fresh-air circulation and modular construction for office projects.
≥30 dB insulationSmart lightingFresh-air circulationModular installation
Final finishes, electrical outlets, furniture configuration, packing and compliance documents are confirmed with the quotation.
01 / 02
Acoustic privacy system
Quiet space engineered for commercial interiors.
KL-S uses a modular aluminum structure, multilayer acoustic panels, insulated ultra-clear glass and smart environmental controls to create a comfortable enclosed workspace for modern office projects.
Commercial construction
6063-T5 aluminum framing, 50 mm composite steel panels and certified insulating glass support repeated installation and project use.
Smart comfort
Radar-sensed LED lighting, adjustable positive-pressure ventilation and integrated USB-A plus Type-C power support everyday use.
KL-S specification
Dimensions, construction and shipment data.
Specifications organized from the supplied acoustic pod parameter sheet.
Product typeCommercial acoustic pod

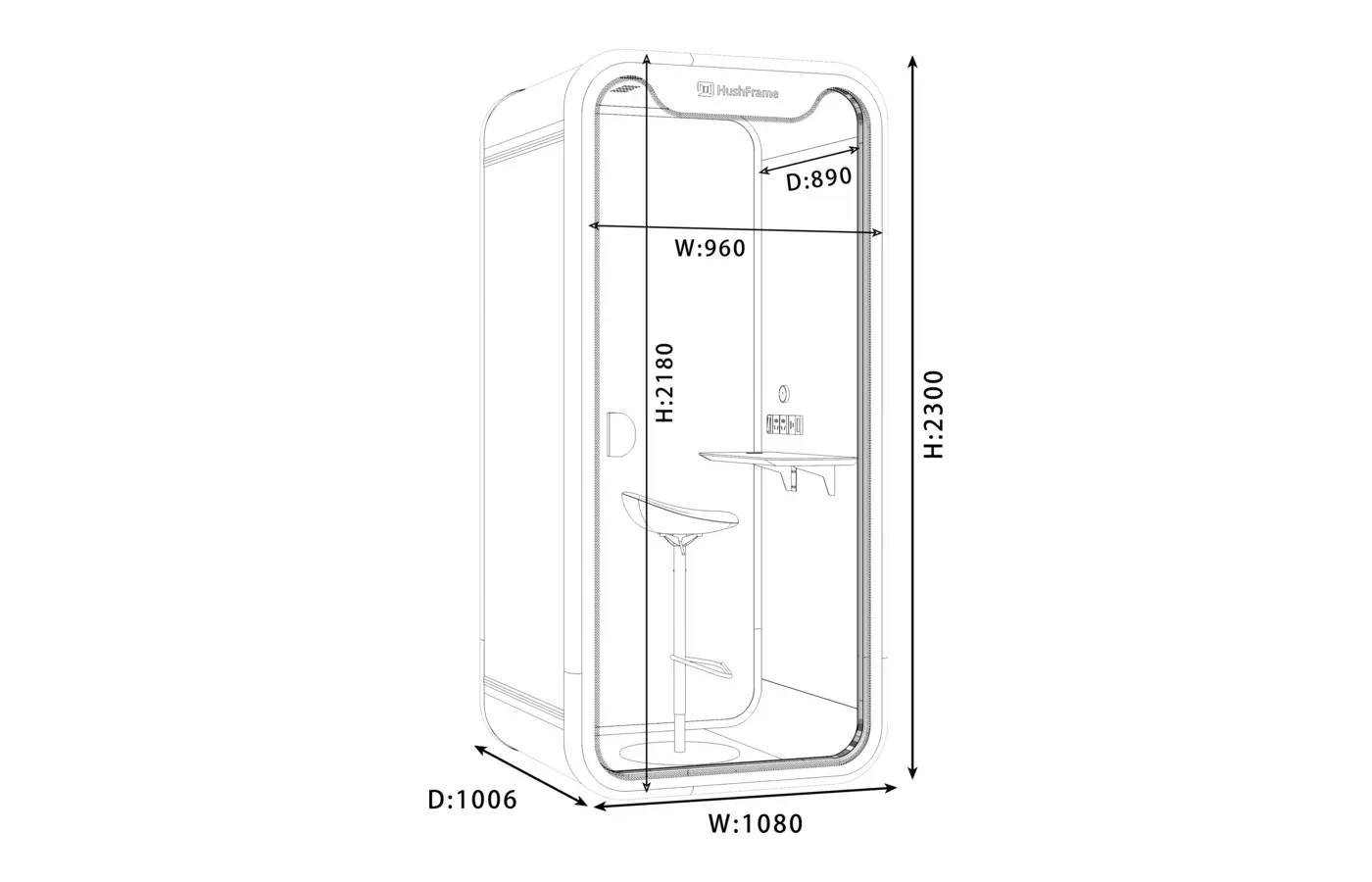

Overall dimensions1080 W × 1006 D × 2300 H mm
Interior dimensions960 W × 890 D × 2180 H mm
Packed dimensions480 W × 2300 D × 1200 H mm
Shipment volume1.3 m³
Packing pieces1
Product weight325 kg
Acoustic performanceSpeech-band sound insulation ≥30 dB
Frame6063-T5 high-precision aluminum alloy, 3–5 mm wall thickness, epoxy powder-coated
Wall system50 mm acoustic composite steel panel with multilayer insulation and 55 kg/m³ polyester acoustic cotton
Glass and door5 mm + 20A + 6 mm hollow ultra-clear acoustic glass with 3C safety certification
Interior lining12 mm high-density, formaldehyde-free polyester fiber acoustic board
Floor system5 mm nylon carpet over a 50 mm acoustic composite steel panel
LightingThree-color LED, radar sensing and 0–10 level brightness adjustment on the standard adjustable version
VentilationPositive-pressure fresh-air circulation with radar sensing and 0–10 level fan adjustment
ElectricalMulti-function outlet with USB-A and Type-C; market-specific customization supported
MobilityHidden caster system for convenient relocation
WarrantyMain structure: 10 years; electrical components and hardware: 3 years
Commercial project supply
Specify KL-S for your acoustic-space project.
Send quantity, destination, preferred finishes, electrical standard and furniture configuration for review and export quotation.
Request KL-S detailsCommercial purchasing
KL-S office privacy pod: dimensions and delivery
For a KL-S office pod quotation, use the published external dimensions of 1080 W × 1006 D × 2300 H mm and interior dimensions of 960 W × 890 D × 2180 H mm. Compare the usable interior with the proposed desk, seat or meeting table before approving an office privacy booth layout.
The listed product weight is 325 kg and shipment volume is 1.3 m³. Include these figures in the receiving plan, then confirm packing dimensions, the delivery route and installation responsibilities for the selected order.
This model lists hidden casters. Review the floor surface, stability and relocation instructions before planning a movable office pod; transport and assembly are separate from routine repositioning.
State the intended call or meeting use, finish, electrical standard and furniture package in the RFQ. Occupancy, ventilation performance and acoustic evidence should be reviewed for the exact configuration.
Request a Project Quote
Tell us your quantity, destination and specification. Ask for model-specific MOQ, lead time, OEM / ODM options and mixed-container planning in one inquiry.
