Sound managed
Composite sound insulation, vibration buffering and polyester acoustic lining reduce speech transmission and internal reverberation.
Commercial Acoustic Pods

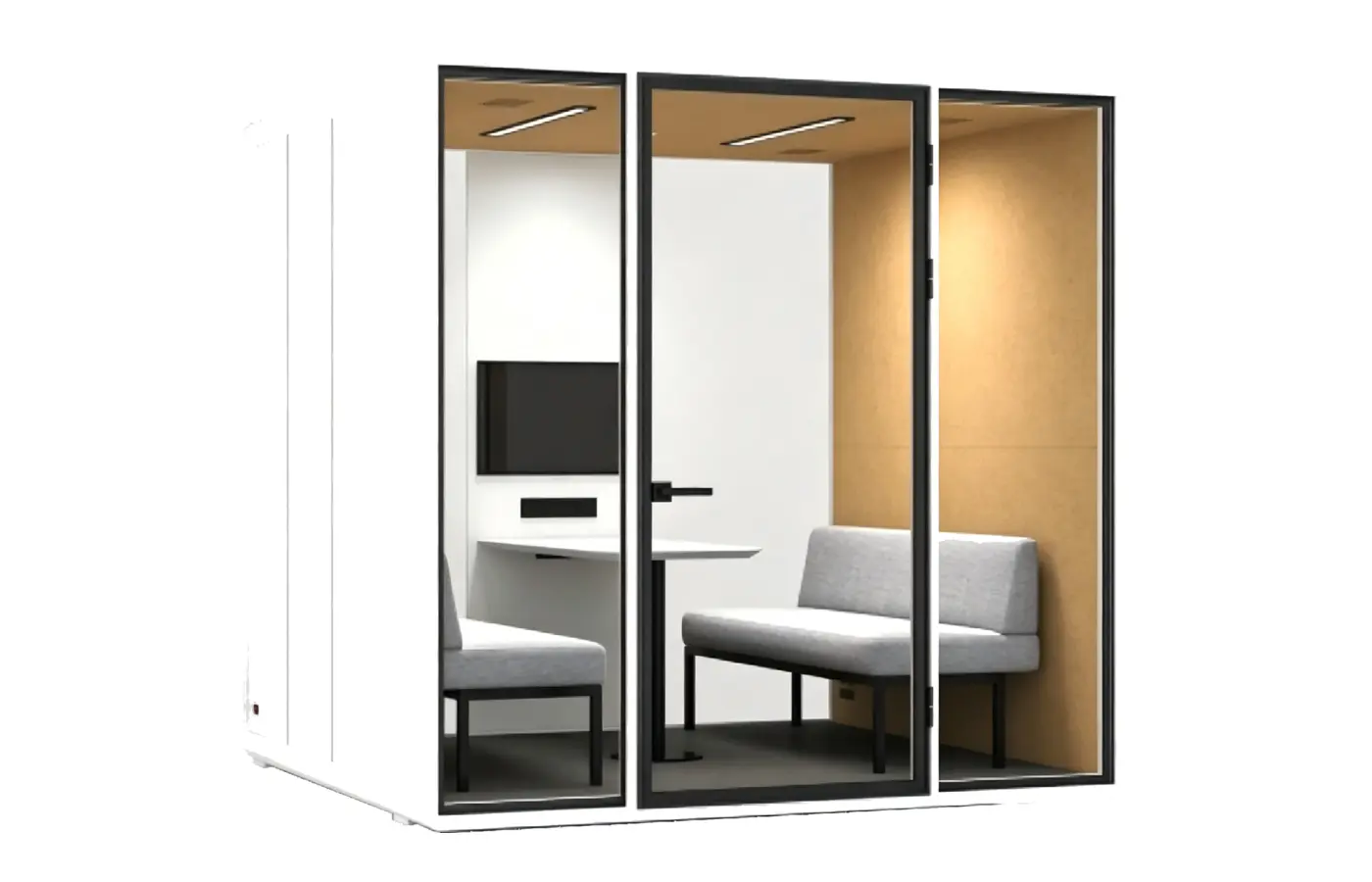

SL-LL Acoustic Pod
SL-LL commercial acoustic pod with ≥30 dB speech-band sound insulation, smart lighting, fresh-air circulation and modular construction for office projects.
≥30 dB insulation5000 K LEDFresh-air circulationModular installation
Final finishes, electrical outlets, furniture configuration, packing and compliance documents are confirmed with the quotation.
01 / 02
Acoustic privacy system
Quiet space engineered for commercial interiors.
SL-LL uses a modular aluminum structure, multilayer acoustic panels, laminated tempered acoustic glass and smart environmental controls to create a comfortable enclosed workspace for modern office projects.
Commercial construction
6063-T5 aluminum framing, 50 mm composite steel panels and certified laminated acoustic glass support repeated installation and project use.
Smart comfort
Radar-sensed LED lighting, positive-pressure ventilation and integrated USB-A plus Type-C power support everyday use.
SL-LL specification
Dimensions, construction and shipment data.
Specifications organized from the supplied acoustic pod parameter sheet.
Product typeCommercial acoustic pod

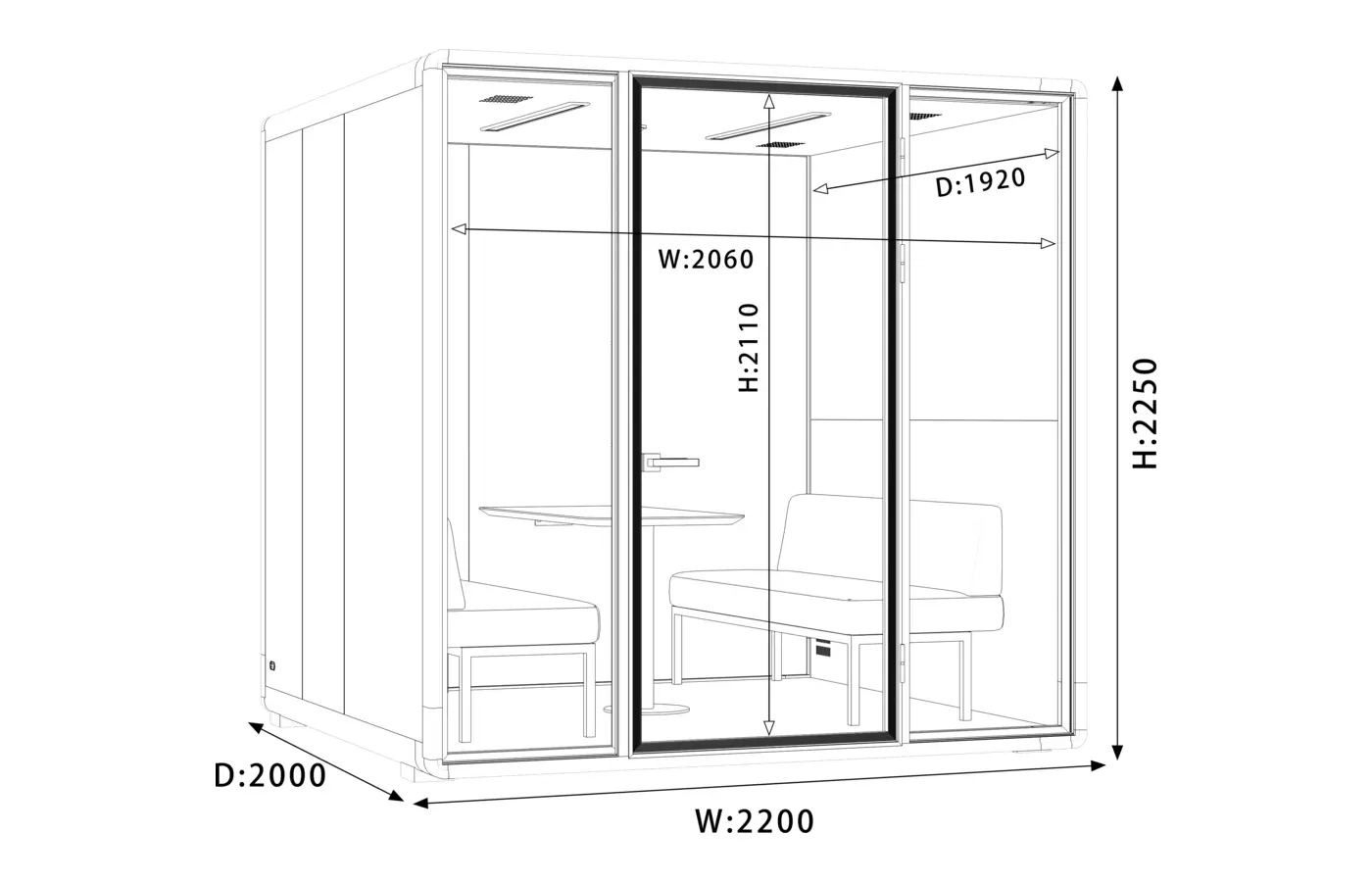

Overall dimensions2200 W × 2000 D × 2250 H mm
Interior dimensions2060 W × 1920 D × 2110 H mm
Packed dimensions2300 W × 1100 D × 1265 H mm
Shipment volume3.3 m³
Packing pieces1
Product weight850 kg
Acoustic performanceSpeech-band sound insulation ≥30 dB
Frame6063-T5 high-precision aluminum alloy, 3–5 mm wall thickness, epoxy powder-coated
Wall system50 mm acoustic composite steel panel with multilayer insulation and 55 kg/m³ polyester acoustic cotton
Glass and door5 mm + 1.14 PVB + 6 mm laminated tempered acoustic glass with 3C safety certification
Interior lining12 mm high-density, formaldehyde-free polyester fiber acoustic board
Floor system5 mm nylon carpet over a 50 mm acoustic composite steel panel
Lighting5000 K LED with radar-sensed automatic control; 0–10 level brightness adjustment available as an option
VentilationPositive-pressure fresh-air circulation with radar sensing; 0–10 level fan adjustment available as an option
ElectricalMulti-function outlet with USB-A and Type-C; market-specific customization supported
MobilityFixed base with tool-assisted relocation
WarrantyMain structure: 10 years; electrical components and hardware: 3 years
Commercial project supply
Specify SL-LL for your acoustic-space project.
Send quantity, destination, preferred finishes, electrical standard and furniture configuration for review and export quotation.
Request SL-LL detailsCommercial purchasing
SL-LL office privacy pod: dimensions and delivery
For a SL-LL office pod quotation, use the published external dimensions of 2200 W × 2000 D × 2250 H mm and interior dimensions of 2060 W × 1920 D × 2110 H mm. Compare the usable interior with the proposed desk, seat or meeting table before approving an office privacy booth layout.
The listed product weight is 850 kg and shipment volume is 3.3 m³. Include these figures in the receiving plan, then confirm packing dimensions, the delivery route and installation responsibilities for the selected order.
This model lists a fixed base with tool-assisted relocation. Plan the installed position and service access before assembly; confirm the relocation procedure rather than assuming the pod can be rolled between rooms.
State the intended call or meeting use, finish, electrical standard and furniture package in the RFQ. Occupancy, ventilation performance and acoustic evidence should be reviewed for the exact configuration.
