Sound managed
Composite sound insulation, vibration buffering and polyester acoustic lining reduce speech transmission and internal reverberation.
Commercial Acoustic Pods
SL-S Acoustic Pod
SL-S commercial acoustic pod with ≥30 dB speech-band sound insulation, smart lighting, fresh-air circulation and modular construction for office projects.
≥30 dB insulation5000 K LEDFresh-air circulationModular installation
Final finishes, electrical outlets, furniture configuration, packing and compliance documents are confirmed with the quotation.
01 / 03
Acoustic privacy system
Quiet space engineered for commercial interiors.
SL-S uses a modular aluminum structure, multilayer acoustic panels, laminated tempered acoustic glass and smart environmental controls to create a comfortable enclosed workspace for modern office projects.
Commercial construction
6063-T5 aluminum framing, 50 mm composite steel panels and certified laminated acoustic glass support repeated installation and project use.
Smart comfort
Radar-sensed LED lighting, positive-pressure ventilation and integrated USB-A plus Type-C power support everyday use.
SL-S specification
Dimensions, construction and shipment data.
Specifications organized from the supplied acoustic pod parameter sheet.
Product typeCommercial acoustic pod

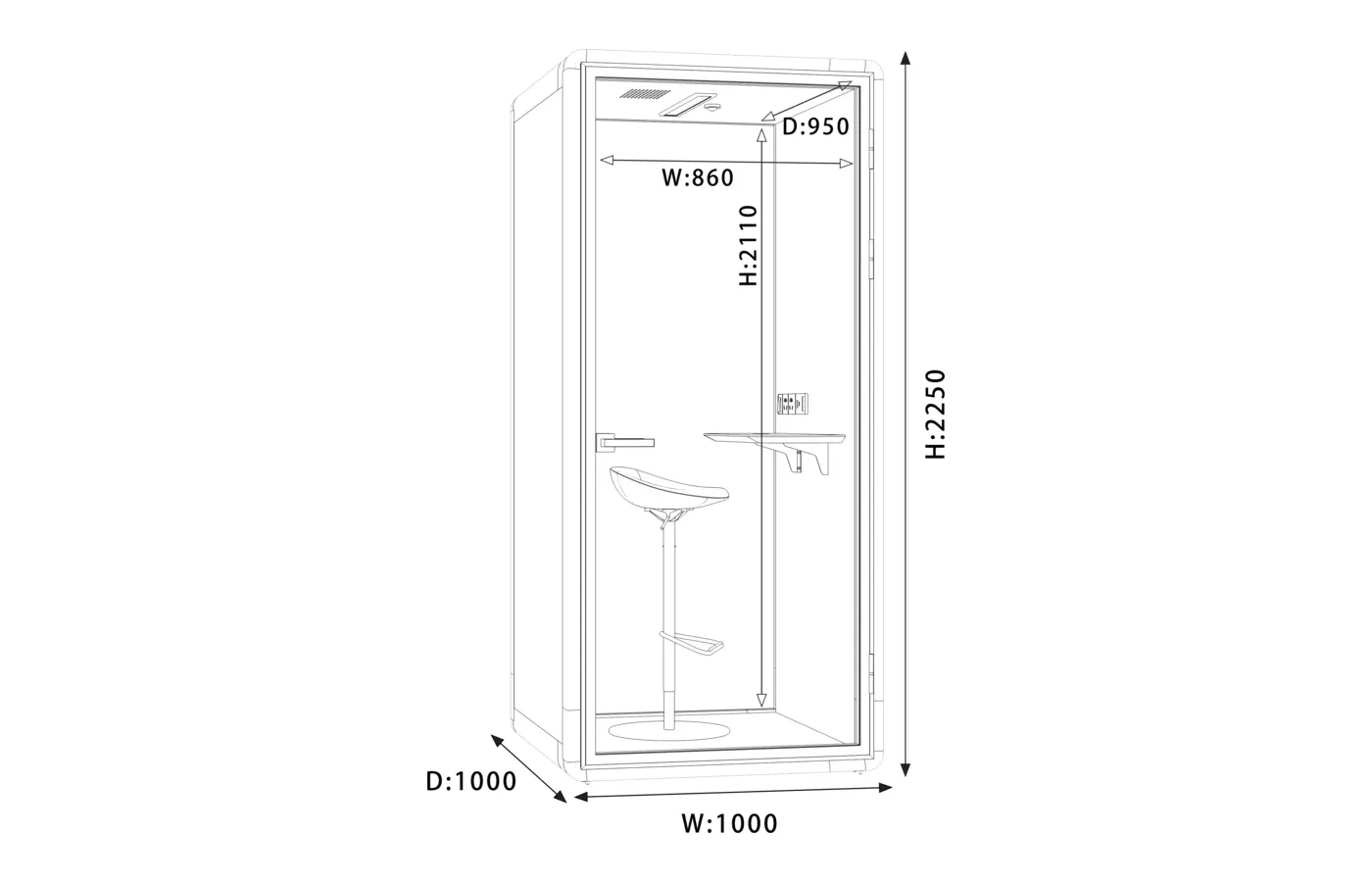

Overall dimensions1000 W × 1000 D × 2250 H mm
Interior dimensions860 W × 950 D × 2110 H mm
Packed dimensions2300 W × 580 D × 1265 H mm
Shipment volume1.8 m³
Packing pieces1
Product weight450 kg
Acoustic performanceSpeech-band sound insulation ≥30 dB
Frame6063-T5 high-precision aluminum alloy, 3–5 mm wall thickness, epoxy powder-coated
Wall system50 mm acoustic composite steel panel with multilayer insulation and 55 kg/m³ polyester acoustic cotton
Glass and door5 mm + 1.14 PVB + 6 mm laminated tempered acoustic glass with 3C safety certification
Interior lining12 mm high-density, formaldehyde-free polyester fiber acoustic board
Floor system5 mm nylon carpet over a 50 mm acoustic composite steel panel
Lighting5000 K LED with radar-sensed automatic control; 0–10 level brightness adjustment available as an option
VentilationPositive-pressure fresh-air circulation with radar sensing; 0–10 level fan adjustment available as an option
ElectricalMulti-function outlet with USB-A and Type-C; market-specific customization supported
MobilityHidden caster system for relocation
WarrantyMain structure: 10 years; electrical components and hardware: 3 years
Commercial project supply
Specify SL-S for your acoustic-space project.
Send quantity, destination, preferred finishes, electrical standard and furniture configuration for review and export quotation.
Request SL-S details
